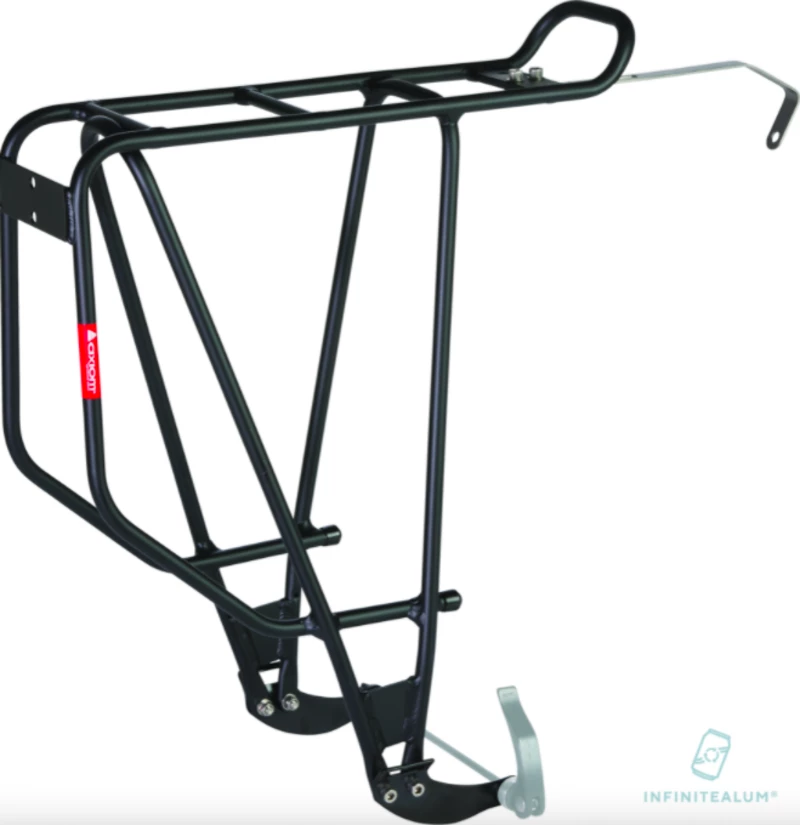

AXIOM Streamliner DLX – Rear Rack For Disc Brakes

The bikes have changed; the luggage racks should change too! We threw the 1980s models (that everyone copies) out the window, then designed a rack that solves the heel clearance issues and
incompatibilities that arise when trying to install traditional racks on modern bikes. Install a Streamliner® rack on almost any bike, then let your bike do the work for you.

Construction :
• Hand welded 10.2mm 6061-T6 tubular aluminum.
• Very strong modular steel legs.
• Durable coating resists scratches.

Fastening system :
• Legs that attach to a standard quick release* (not included) or traditional eyelets.
• The central support can be attached to a brake caliper or a fender bridge.
• Optional bolt-on axle kit (171356-17) can be used to equip bikes with bolt-on axles.
* Visit axiomgear.com for thru-axle solutions.

Features :
• Exceptional torsional stiffness.
• Not just for bikes with disc brakes.
• Suitable for frames of all materials, including those made of carbon.
• Attaches to standard quick release, as well as raditional dropout eyelets.
• Streamlined shape that enhances the aerodynamics of the bike and greatly improves its handling by keeping your load close to the center.
• Modular set-back dropouts maximize heel clearance and accommodate disc brakes without adding excess width that can interfere with the ride of the bike.
• 280mm Versalock® stems are long enough to fit even the smallest bikes.
• Versalock® rods can be bent up to 30 degrees without compromising strength.
• To solve installation problems on certain types of bicycles, Versalock® brackets can be mounted either below or on the
rack platform.
• The central stainless steel support can be bent to adapt to several types of frames.
• Double welds increase strength and long term durability.
• Rear dropout bolts can be used as fender brackets.
• Reflector/light bracket, frame bolts included
• Lifetime warranty.

Compatibility: 700c
Luggage rack height: 390 mm / 15.4 in
Platform size: 355 x 60mm /
14″ x 2.4″
Weight: 510 g / 1.12 lb (including hardware)
Load capacity: 50 kg / 110 lbs.
