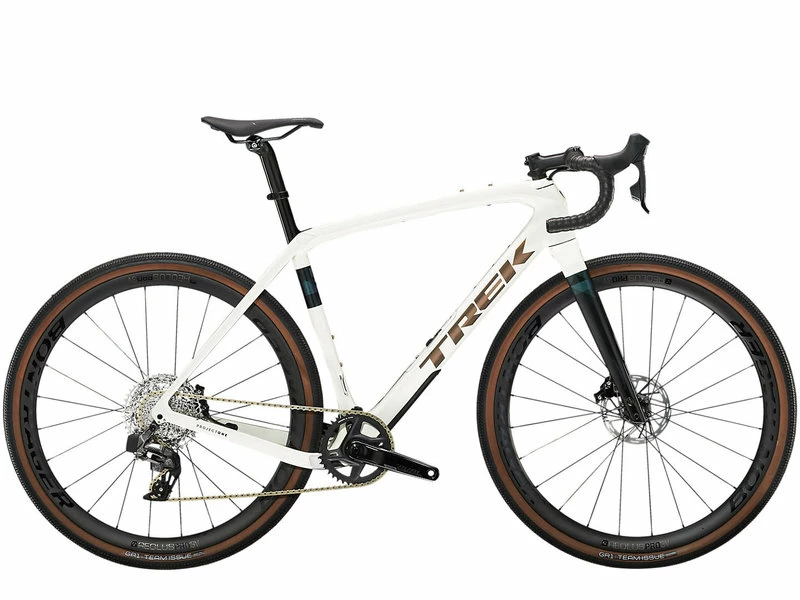

Checkpoint SLR 6 eTap is a carbon gravel bike that’s built for crushing the world’s greatest gravel races. The lightweight 700 Series OCLV Carbon frame has gravel-smoothing IsoSpeed and a nimble-yet-stable progressive geometry. Plus, a smart and smooth SRAM Rival wireless electronic drivetrain with power meter for super-fast shifts, and extra mounts for gear and accessories. This bike a true gravel-grinding powerhouse.
| Frame | 700 Series OCLV Carbon, IsoSpeed, downtube storage door, internal routing, Ride Tuned seat mast, chain keeper, T47 BB, fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Checkpoint carbon, tapered carbon steerer, fender mounts, flat mount disc, 12x100mm thru axle |
| Frame fit | Gravel |
expand_less
| Wheel front | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100×12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142×12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tire | Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700×40 c |
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | 700x45c / 650×2.1″ Bontrager tires |
expand_less
| Shifter | SRAM Rival eTap AXS, 12 speed |
|---|---|
| Rear derailleur | SRAM Rival XPLR eTap AXS, 44T max cog |
| *Crank | Size: 49 SRAM Rival AXS Power Meter, 40T, DUB Wide spindle, 165mm length |
| Size: 52 SRAM Rival AXS Power Meter, 40T, DUB Wide spindle, 170mm length | |
| Size: 54, 56 SRAM Rival AXS Power Meter, 40T, DUB Wide spindle, 172.5mm length | |
| Size: 58, 61 SRAM Rival AXS Power Meter, 40T, DUB Wide spindle, 175mm length | |
| Bottom bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM XG-1251, 10-44, 12-speed |
| Chain | SRAM Rival, 12-speed |
| Max chainring size | 1x: 46T, 2x: 50/37 (Shimano: 36) |
expand_less
| *Saddle | Size: 49, 52 Bontrager P3 Verse Elite, stainless steel rails, 155 mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager P3 Verse Elite, stainless steel rails, 145 mm width | |
| *Seatpost | Size: 49, 52, 54, 56 Bontrager carbon seatmast cap, 5mm offset, short length |
| Size: 49, 52, 54, 56 Bontrager carbon seat mast cap, 5 mm offset, short length | |
| Size: 58, 61 Bontrager carbon seatmast cap, 5mm offset, tall length | |
| Size: 58, 61 Bontrager carbon seat mast cap, 5 mm offset, tall length | |
| *Handlebar | Size: 49 Bontrager Pro IsoCore VR-SF, 38cm |
| Size: 52 Bontrager Pro IsoCore VR-SF, 40cm | |
| Size: 54, 56 Bontrager Pro IsoCore VR-SF, 42cm | |
| Size: 58, 61 Bontrager Pro IsoCore VR-SF, 44cm | |
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: 52, 54 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length | |
| Size: 56, 58 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length | |
| Size: 61 Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length | |
| Brake rotor | SRAM Paceline, rounded, CenterLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160mm front & rear |
expand_less
| Bag | Bontrager BITS Internal Frame Storage Bag |
|---|
expand_less
| Weight | 56 – 8.69 kg / 19.16 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
