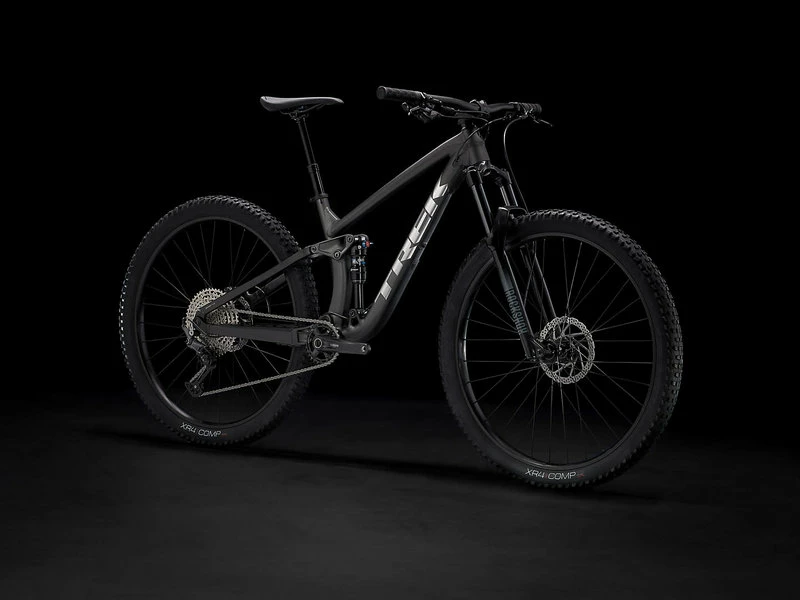

Fuel EX 5 is a full-suspension trail bike that’s ready to handle it all. With trail-taming 140mm front and 130mm rear suspension, a Shimano 1×12 drivetrain, a dropper post for getting low on descents, and hydraulic disc brakes, the Fuel EX 5 hits the mark as a high-value, high-performance mountain bike with exceptional versatility.
The tech you get
A sturdy aluminum frame with a Knock Block steerer stop to protect against spinning bars. A 140mm RockShox Recon Silver fork, 130mm of rear travel with an X-Fusion Pro 2 shock, a durable 12-speed Shimano Deore drivetrain, dropper post, and hydraulic disc brakes.
Why you’ll love it
- You get a high-end ride at an exceptional value with frame features like Boost148 and ABP that give you confident handling and room to upgrade parts as your skills grow
- It has the capability of far more expensive trail bikes: it shreds singletrack and can even handle the occasional XC or enduro race
- The dropper post lets you lower your saddle on the fly so it’s out of the way on descents
- The RockShox fork’s DebonAir spring can easily be adjusted for a specific rider weight, and it’s lighter than a coil spring
- We expanded our size range to ensure a better fit for all riders. And, you get the fastest wheel that fits your frame: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M to XL get 29˝ wheels
| Frame | Alpha Platinum Aluminium, tapered head tube, Knock Block, Control Freak internal routing, downtube guard, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel |
|
*Fork |
Size: XS , S RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealth, 140 mm travel |
| Size: S , M , ML , L , XL , XXL RockShox Recon Silver, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel |
|
|
*Shock |
Size: XS , S X-Fusion Pro 2, 2-position damper, 210×52.5mm |
| Size: S , M , ML , L , XL , XXL X-Fusion Pro 2, 2-position damper, 210x55mm |
|
| Max compatible fork travel | 150mm (561mm axle-to-crown) |
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
|
*Hub rear |
Size: XS , S , M , ML , L , XL , XXL Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Size: XS , S , M , ML , L , XL , XXL Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle |
|
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
| Spokes | 14 g stainless steel |
|
*Tire |
Size: XS , S Bontrager XR4 Comp, wire bead, 30 tpi, 27.5×2.60″ |
| Size: S , M , ML , L , XL , XXL Maxxis Rekon EXO, wire bead, 60 tpi, 29×2.60” |
|
| Size: S , M , ML , L , XL , XXL Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60″ |
|
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29×2.60″ Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |

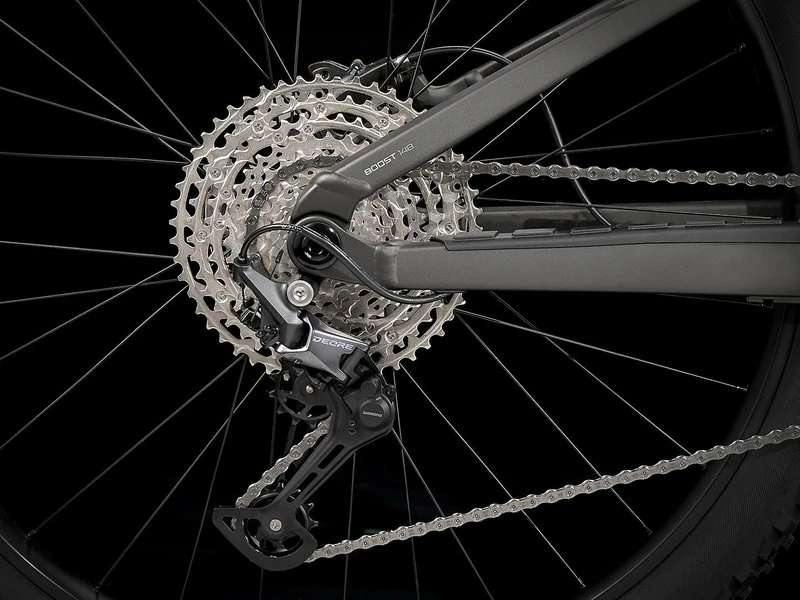

| Rear derailleur | Shimano Deore M6100, long cage |
|
*Crank |

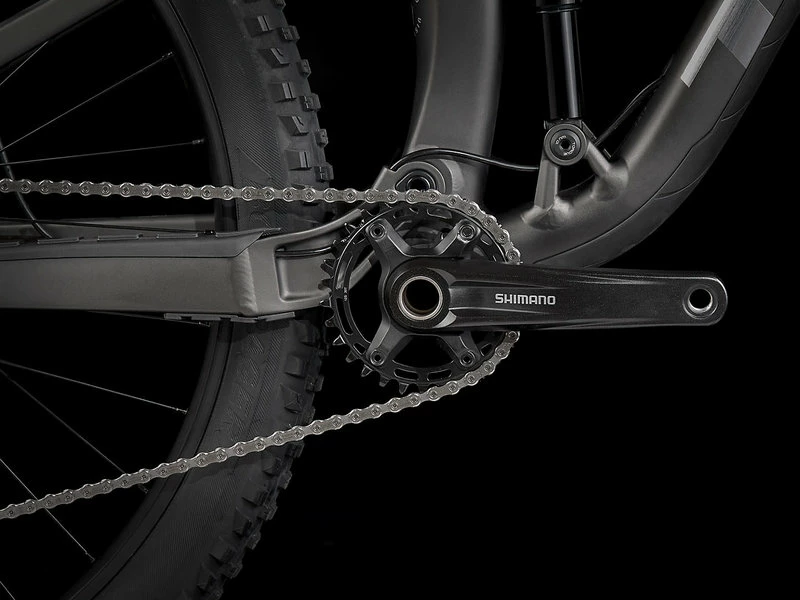

Size: XS , S , M , ML , L Shimano MT511, 30T steel ring, Boost, 170 mm length |
| Size: M , ML , L , XL , XXL Shimano MT511, 30T steel ring, Boost, 175 mm length |
|
| Bottom bracket | Shimano MT500, 92 mm, PressFit |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 34T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|
*Seatpost |
Size: XS , S TranzX JD-YSP18, 100mm travel, internal routing, 31.6mm, 361mm length |
| Size: M , ML , L , XL , XXL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
|
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8″ top, 1.5″ bottom |
| Brake | Shimano hydraulic disc, MT201 lever, MT200 calliper |
| Brake rotor | Shimano RT56, 6-bolt, 180 mm |
