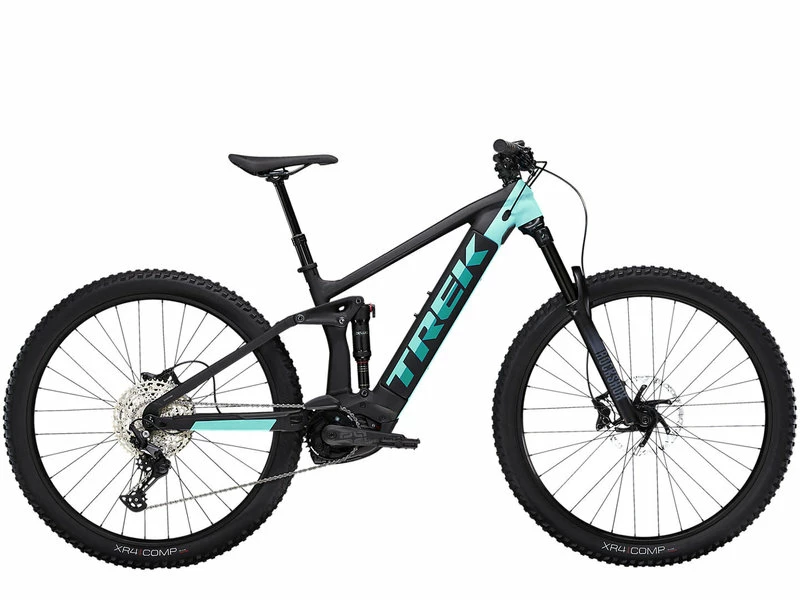

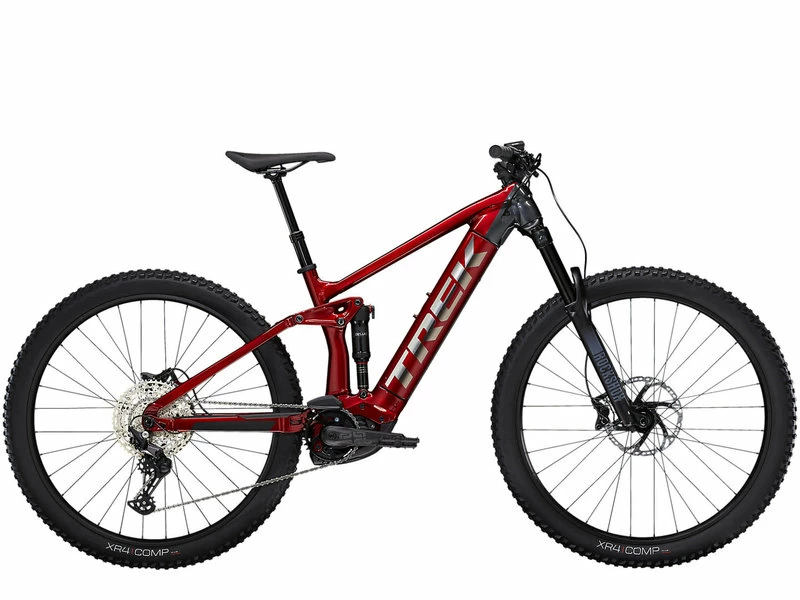

Trek Rail 5 – Electric Mountain Bike
Le prix initial était : 329,00 €.97,99 €Le prix actuel est : 97,99 €.
- Achetez en toute confiance, profitez des retours gratuits.
- Votre satisfaction est garantie à 100%.
- Paiements sécurisés, le choix intelligent
- Vos questions, nos réponses rapides.
Rail 5 is a full-suspension electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analog trail bikes, plus a powerful Bosch drive system that’s basically like having your own shuttle.
| Frame | Alpha Platinum Aluminum, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel |
| Shock | RockShox Deluxe Select+, 230×57.5mm |
| Max compatible fork travel | 170mm (580mm axle-to-crown) |
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
| Tire | Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60″ |
| Max tire size | Frame: 29×2.60″ Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 34T, 165 mm length |
| Chain ring | E*thirteen, 34T, steel |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Pedal | VP-536 nylon platform |
| Max chainring size | 34T |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: M, L, XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length | |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Headset | Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8″ top, 1.5″ bottom |
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Brake rotor | Shimano RT76, 6-bolt, 203 mm |
| Battery | Bosch PowerTube 500 |
|---|---|
| Charger | Bosch compact 2A, 100-240V, smart system |
| Motor | Bosch Performance Line CX, magnesium motor body, 85 Nm, 20mph or 32km/h max assist |
| Computer | Bosch Purion |
| Weight | M – 23.88 kg / 52.65 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
| Color | Matte Trek Black%2FMiami Green, Crimson%2FLithium Grey |
|---|---|
| Size | S, M, L, XL |
